Color: Black
Dimensions(mm): 180(D) x 118(W) x 57(H)
Weight: 0.76 kg

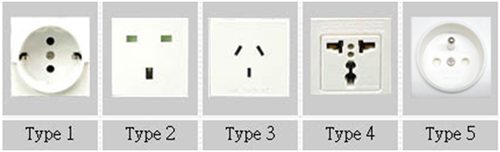

‧Output type:

‧Features :

• High technology of CPU modularity designed for wide-range appliances, pure sine waveoutput with THD <2.0%
• Suitablefor different kinds of loads, resistive, capacitive etc.
• High Surge capacity for starting demanding loads.
• Perfect LED to show the working status
• External connection with battery designed for easy replacement and usage time.
• High frequency (>90%)
• Built-insolar charger available for big models(>=1500W)
• Full protection : output shortage, outputoverload, high voltage alarm & protection, low voltage alarm & protection.
• Light, stylish and modern aluminum casing designed for easy carrying.
• Intelligent temperature fans, automotive switch.

‧Scope of Application :

Medical Instruments, Emergency Power, Oxygen Concentrators, Cash Register, Home Theater, High-end Stereos,Computers, Power Tools, Radios, DVD players, TV’s , Musical Instruments, Recording Equipments, Limousines, Buses, RV’s, Precision Equipment, SensitiveRadio Equipment, Laser Printers, Fax Machines, etc.

‧Specifications:

Model		SI-12020/E	SI-24020/E	SI-48020/E
Output	Continuous output	200W
	Surge Power	400W
	AC Voltage	AC 100V / 110V / 115V / 120Vor200V/ 220V / 230V / 240V to be selected
	Regulation	Vrms ± 3%
	Frequency	50Hz or 60Hz ± 1
	Wave Form	Pure Sine Wave
	Total Harmonic Distortion	THD ＜ 3%
	USB Output	DC 5V ± 5%500mA
Input	Battery Voltage	DC 12V	DC 24V	DC 48V
	DC Current (typ.)	20A	10A	5A
	Low Battery Alarm	DC 12V/10.5V ± 2%	DC 24V/21V ± 2%	DC 48V/42V ± 2%
	Low Battery Protection	DC 12V Selected: 10V ± 2%	DC24V Selected: 20V ± 2%	DC48V Selected: 40V ± 2%
	High Battery Protection	12V/15.5V ± 2%	24V/31V ± 2%	48V/62V ± 2%
	No load current	12V/0.3A	24V/0.2A	48V/0.1A
	Efficiency	＞ 89%
Protection	High temperature	Yes
	Short-circuit	Yes
	Overload	Yes
	Input Voltage	Yes
Operating temperature range		-20℃~ 50℃
Operating Humidity		0~90 %
Intelligent Design Heat Auto Control		Fan Start speeding up : 38℃ ± 3 ,  Fan Stopspeeding up : 42℃± 3
		High Temperature Shut Down : 63℃±5   ,  Restart Output : 56℃±3
Indicator		Inverter : Green LED
		Overload :  RedLED
		Over temperature: Red LED
Others	Soft  Start-up	Soft Started Function
	Remote Controller	No
Mechanical	Dimensions (mm)	180 (D) x 118 (W) x 57(H)
	Weight	0.76 kg
